Dellorto DHLA 45E Carburetor Set with Lotus 907 Intake Manifold – Fully Rebuilt & Bench Set

Fully rebuilt matched pair of Dellorto DHLA 45E sidedraft carburetors, set up specifically for the Lotus 907 engine, and supplied complete with the correct Lotus intake manifold.

The carburetors have been completely disassembled, cleaned, inspected, and rebuilt. All internal jetting and calibration components have been fitted to the correct Lotus specification for the 907 engine.

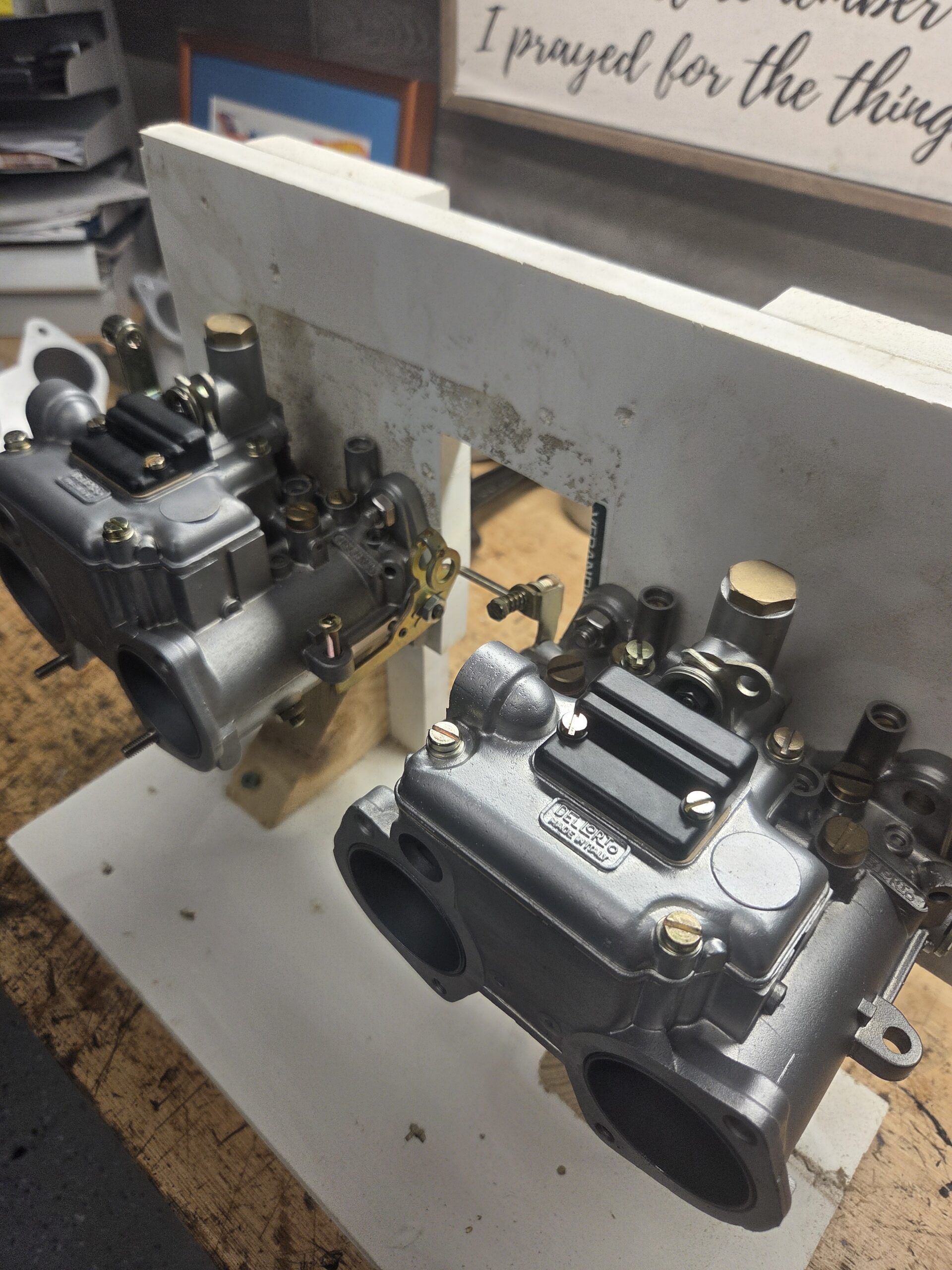

Before sale, the carburetors were mounted and bench set as an assembly. Float levels were set, throttle operation was checked, and both carburetors were mechanically synchronized so the throttle butterflies open and close together. Idle mixture screws have also been set to an initial baseline for installation.

Included:

Matched pair of Dellorto DHLA 45E carburetors
Correct Lotus 907 jetting and internal calibration
Rebuilt with new service components as required
Floats set
Carburetors mechanically synchronized
Initial idle-mixture setting completed
Throttle and enrichment mechanisms checked for proper operation
Lotus 907 intake manifold

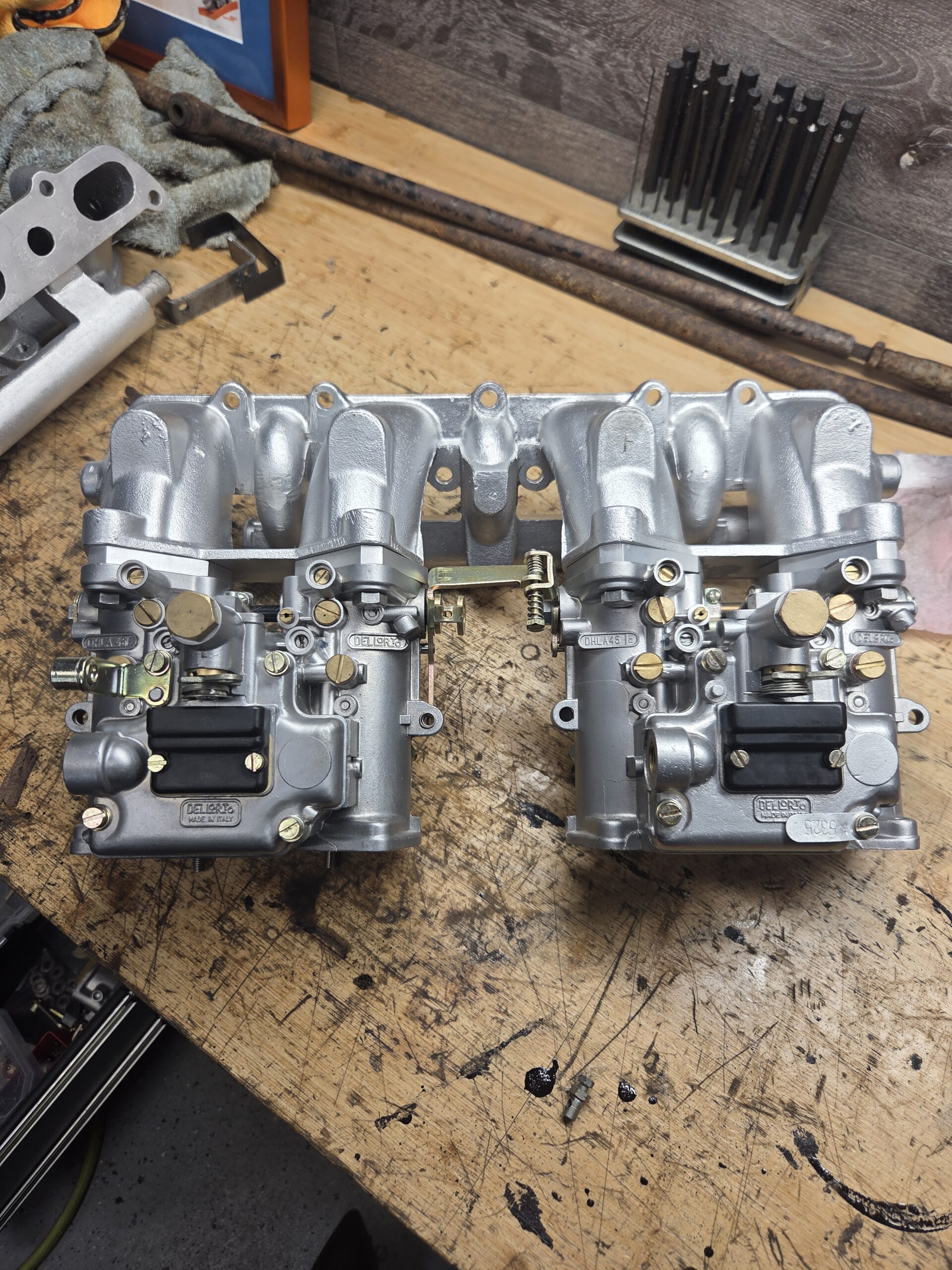

Complete assembly as pictured

The carburetors will require final airflow synchronization and idle-mixture adjustment once installed on the engine, as these settings must be completed with the engine running and at operating temperature.
